ELMA CONTROL VISION

ELMA CONTROL VISION FULLY AUTOMATIC SPOT WELDING PROCESS CONTROL:

• Modular system
• Compatible with all 10 kHz ELMA-Tech transformer guns
• Precision process control, energy control and parallel resistance detection
• Reproducible welding quality
• Attachment for external cooling with water monitors for cooling the gun, transformer, cable and electrodes
• Hall installation plate (HIP)
• Interconnection with conventional bus systems
• Automatic detection of material type and total sheet thickness
• Spotting

SELF-ADJUSTING SPOT WELDING GUNS FROM ELMA-TECH:

• High welding currents, minimum amount of current transitions
• ELMA-QS integrated quality assurance system with clear quality statement
• about the spot weld
• Spot welding in VISION automatic mode
• Precision control thanks to lightweight guns

ELMA-TECH SPOT WELDING GUNS FOR INDUSTRIAL OPERATION:

• ELMA-TECH SPOT WELDING GUNS FOR INDUSTRIAL OPERATION:
  10 kHz medium-frequency transformer
• Lightweight guns (2/3 lighter than conventional guns)
• High output currents of up to 15 kA
• Automatic adjustment of electrode force
• Integrated servo-proportional valve
• Automatic detection of sheet thickness
• Height-adjustable orbital ring (VM / CM)
• Hose and cable set (10 m) with quick-release attachment
• Shut-off valve for water supply (check valve in the return flow) for cap replacement
• Cylinder, piston rod and main bearing guided in precision needle bearings

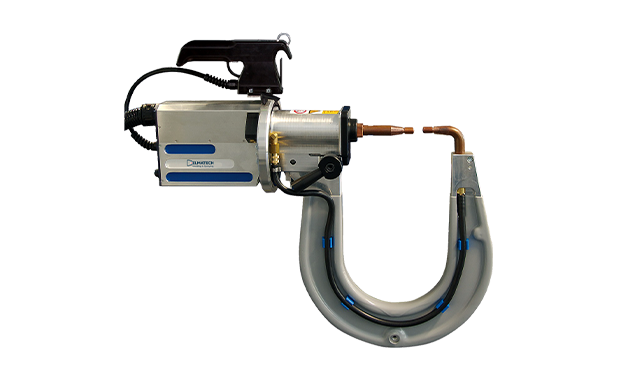

X-AV AND C-AV SPOT WELDING GUNS FROM ELMA-TECH:

• 10 kHz medium-frequency transformer, weighs 4 kg
• Lightweight gun
• Automatic detection of sheet thickness, electrode force adjustment
• High output currents of up to 13 kA
• Ultralight hose and cable set (6 or 10* m)
• 360° orbital ring

C-AV:

• Electrode arm quick-change system
• Standard electrode arms: 40 - 500 mm submerged depth
• Extension of the opening angle by loosening the tension lock

X-AV:

• Precision needle bearing mechanics
• 25° maximum opening angle
• Standard electrode arms up to 450 mm
