Fully automatic spot welding system for motor vehicles

PREMIUMspot Vision with complete software package

PULSED ARC WELDING WITH EFFICIENT POWER SOURCE TECHNOLOGY FROM ELMA-TECH

Resistance spot welding

PREMIUMspot Vision

3-phase connection, 400 V/50 Hz (200-500 V / 50-60 Hz special voltage on request), 6 bar compressed air, 0-230 A output current, 560 V output voltage, 1000 W cooling capacity, transformer C- and X-gun (560 V / 10 kHz, 7 kVA primary power)

Download data sheet

PREMIUMspot Vision FULLY AUTOMATIC SPOT WELDING SYSTEM FOR MOTOR VEHICLES:

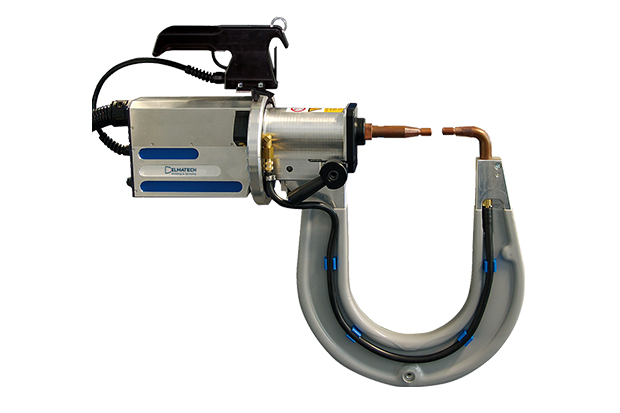

  • C-gun with 6 m hose set
  • Fittings: 40 / 80 / 350 / 500 mm outreach
  • 10 m power cable with 32 amp plug
  • Vertically and laterally adjustable telescopic arm with weight compensation; electrode case

Software:

  • VISION-AUTO, VISION-SPEZIAL, VISION-ALU, ELMA-QS, STANDARD, SINGLE, OPEL, OPEL-VP

SPOT WELDING SYSTEM ACCESSORIES:

  • SpotQS Viewer welding data documentation (optional)
  • Multi-purpose gun
  • Special electrode cap cutting machine
  • Electrode cap cutter
  • X-gun adapter beak / angular electrodes
  • Balancer kit (boom + balancer)
  • Active cooler (for special use)

PREMIUMspot Vision FEATURES AND HIGHLIGHTS:

  • Automatic energy tracking and control of energy input
  • Detection of sheet thickness and material
  • Independent parallel resistance detection system and stabilising control
  • Vehicle-specific programs with vehicle-manufacturer-approved parameters
  • Fully automatic welding of components made of high- or ultra-high-strength, as well as coated and laminated steel panels.

PROCESS OPTIMISATION FROM ELMA-TECH:

Bodywork repairs have never been so easy! The multi-purpose spot welding machine with complete software package as well as vertically and laterally adjustable telescopic arm combines all the necessary welding processes in one device, impressing operators with its simple handling, application, welding properties and optimised process reliability.

PREMIUMspot VISION WELDING PROCESSES AND PROPERTIES:

  • Conventional spot welding (current / time)
  • Spot welding in automatic mode
  • Spot welding with quality assurance
  • Aluminium welding for thin aluminium sheets of <4 mm
  • Welding programs for high- to ultra-high-strength sheet metal
  • Spotting, dent removal, panel shrinking, welding T-pins in place (with optional spotter)
